B6

基本參數

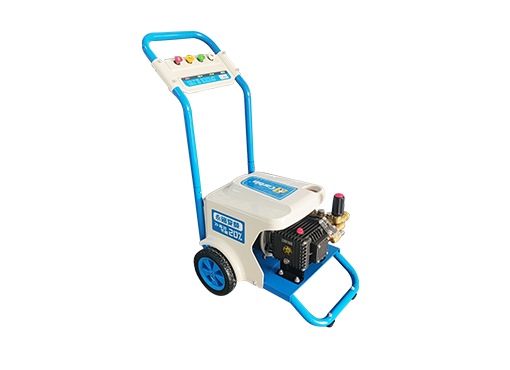

稀土永磁變頻高壓清洗機

  • 描述
  • 參數
高性能永磁變頻電機逆變器，過溫，過載，漏電保護，永不燒電機 High-performance permanent magnet inverter motor with over-temperature, over-load and leakage protection, ensuring the motor will never burn out.
超寬電壓165v-250v可以正常使用確保流量壓力不減 Very wide voltage range from 165V to 250V allows for normal operation while ensuring no reduction in flow and pressure.
關槍緩速停機，避免急停機對電機和泵頭造成損傷，有效延長整機使用壽命 The machine shuts down slowly after the gun is turned off which avoiding damage to the motor and pump head caused by sudden stops, effectively extending its overall service life.
銅制高壓大泵頭，曲軸泵, 可調壓力，防纏繞槍 Large copper high pressure pump head, crankshaft pump, the pressure is adjustable pressure, the gun can be prevented from being entangled.
IPX5防水 IPX5 waterproofing
體積小，是同型號普通清洗機的1/2 Small volume, only half the size of the same model ordinary washers.
重量輕，是同型號普通清機的1/3，方便運輸及移動 Light weight, only one-third the weight of the same model ordinary washers, very convenient for transportation and movement.
節能20%，如每天使用4小時，一天可省電2.4度，一年省電800度以上 20% energy-saving. If used for 4 hours a day, it can save 2.4 kWh per day and over 800 kWh per year.
型號
Model		 B6
額定壓力
Rated Pressure		 12 Mpa
許用壓力
Max Pressure		 14 Mpa
額定流量
Rated Flow		 13 L/min
最大流量
Max Flow		 16 L/min
電機類型
Electric Motor		 變頻永磁電機
Permanent Magnets Inverter Motor
轉速
Resolution		 2800  rpm
功率
Power		 2.5 KW
電壓頻率
Voltage/Frequency		 165v-250v/50HZ
毛重/凈重
Gross / Net Weight		 29.0/20.0 KGS
外形尺寸 (長x寬x高)
Dimensions L × W × H		 690 x 420 x 840 mm
包裝尺寸 (長x寬x高)
Packing Size L × W × H		 550 x 440 x 440 mm
裝柜數量
Container Load Q'ty		 281 pcs, 20GP
705 pcs, 40HQ
